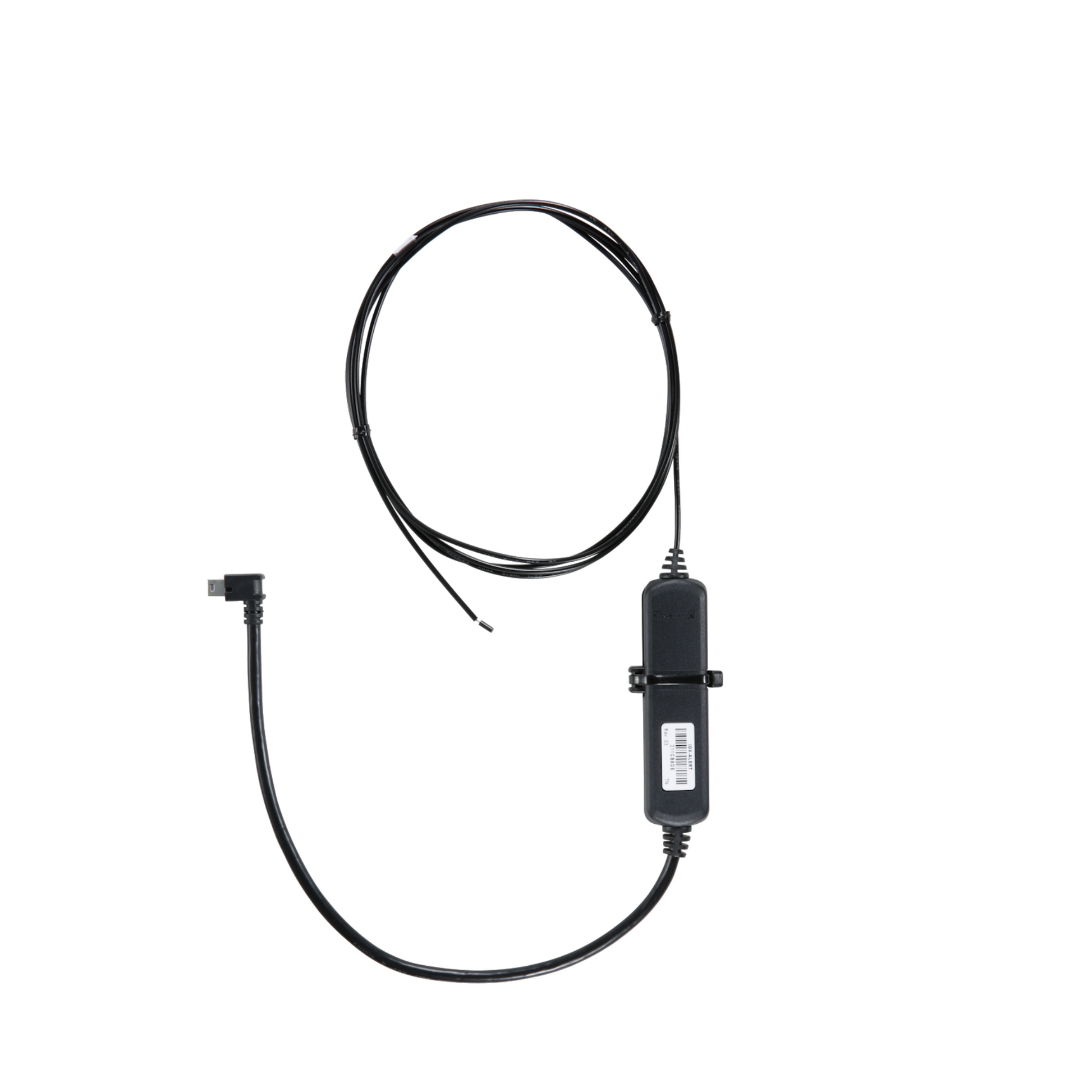

IOX-Alert

The IOX-ALERT empowers drivers to trigger notifications to dispatchers with a simple button press (button not included). Upon activation, a specific engine diagnostic is sent to MyGeotab™, enabling the setup of exception rules for tailored responses. This device is perfect for alert functions without requiring an IRIDIUM satellite connection.

Features

• Monitors one switch input for alerting purposes
• Ideal for alerting dispatchers or indicating task completion

Technical Specifications

• Weight: 50 g
• Size: Overall length - 2380 mm, Widest point - 31 mm W × 16 mm H
• Nominal Input Voltage: 12 V / 24 V
• Interfaces: CAN at 500 kbps (for daisy chaining)
• Inputs Available: 1 Alert
• Resistance: Input Impedance - 37 kΩ, Driving Circuit Resistance < 100 Ω
• Input Logic Levels: GND - Float, Low: Float, High: <100 mV
• Current Draw: 40-100 mA in operating mode, 0.4 mA in sleep mode
• Temperature Rating: –40 ℃ to +85 ℃

Installation

The Male Mini-USB connector connects to the GO Device or another IOX™ harness. Refer to https://support.geotab.com/ioxs/doc/iox-alert  for detailed instructions.

Compatibility

Compatible with all GO7® and newer devices and variants. GO9® can source a maximum total current to the IOX in Daisy Chain.
