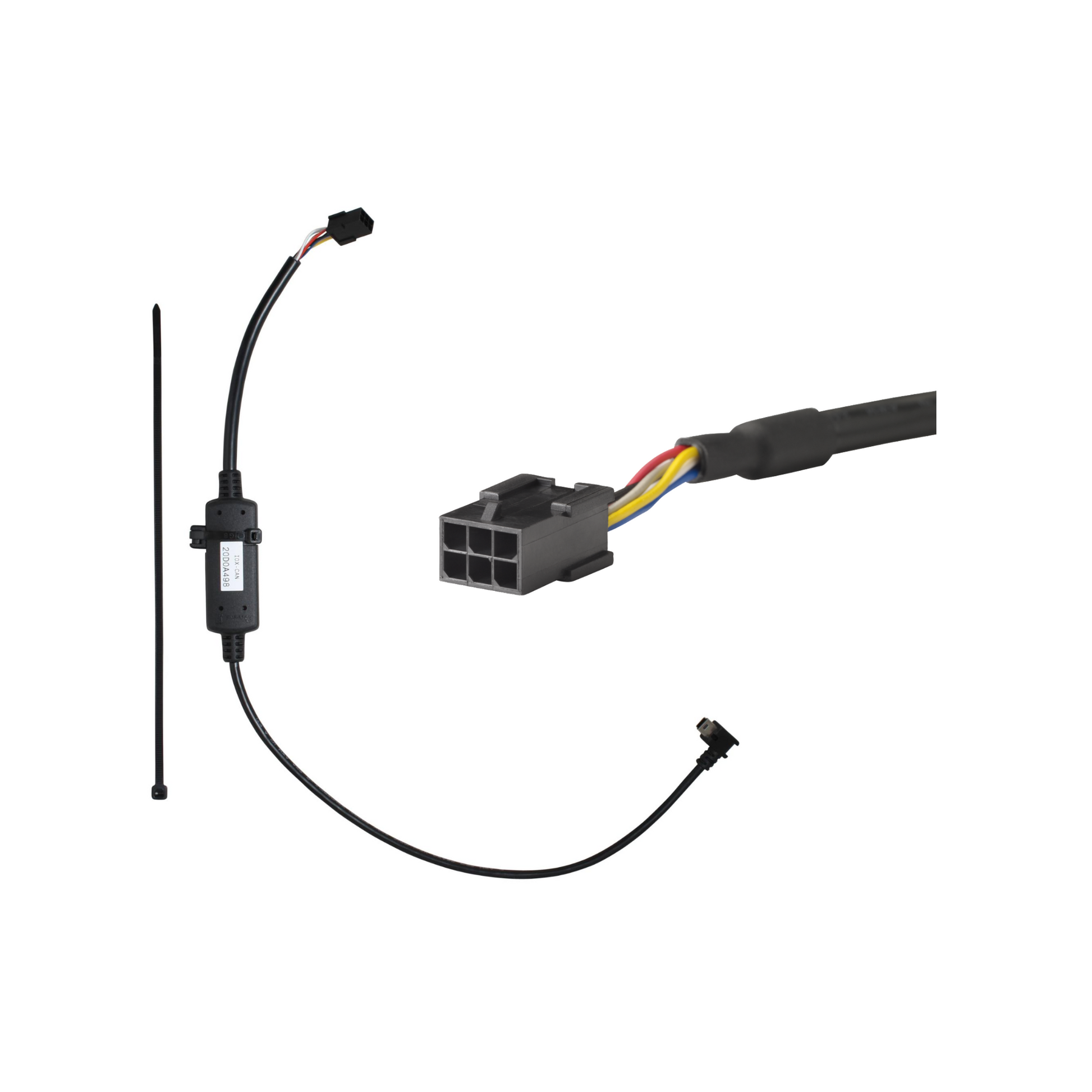

IOX-CAN

The IOX-CAN by Geotab efficiently consolidates data from third-party devices into MyGeotab software, enhancing fleet management capabilities.

Features

• Integrates with Mobileye and MOVON for driver distraction monitoring
• Supports temperature and tire pressure monitoring through Valor
• Facilitates seamless data transmission to MyGeotab

Technical Specifications

• Weight: 46 g
• Connectors: Male & Female Mini-USB Type-B, Molex 6-pin Connector
• Size: 580 mm length, 31 mm width, 16 mm height
• Nominal Input Voltage: 12 V / 24 V
• Current Draw: 40-100 mA in operating mode, 0.4 mA in sleep mode
• Temperature Rating: −40 ℃ to +85 ℃
• Interfaces: External third-party CAN at 250 or 500 kbps, CAN at 500 kbps for daisy chaining
• Third-Party Interface Current Output Limit: 1 A

Installation

Refer to https://support.geotab.com/ioxs/doc/iox-can for detailed instructions.

Regulatory Compliance

• USA: FCC Part 15 Compliant
• Canada: CAN ICES-003 (B) / NMB-003 (B)
• EU: SCIP Number(s) c8731e2f-6af2-4da3-8b9d-37e01319536f
