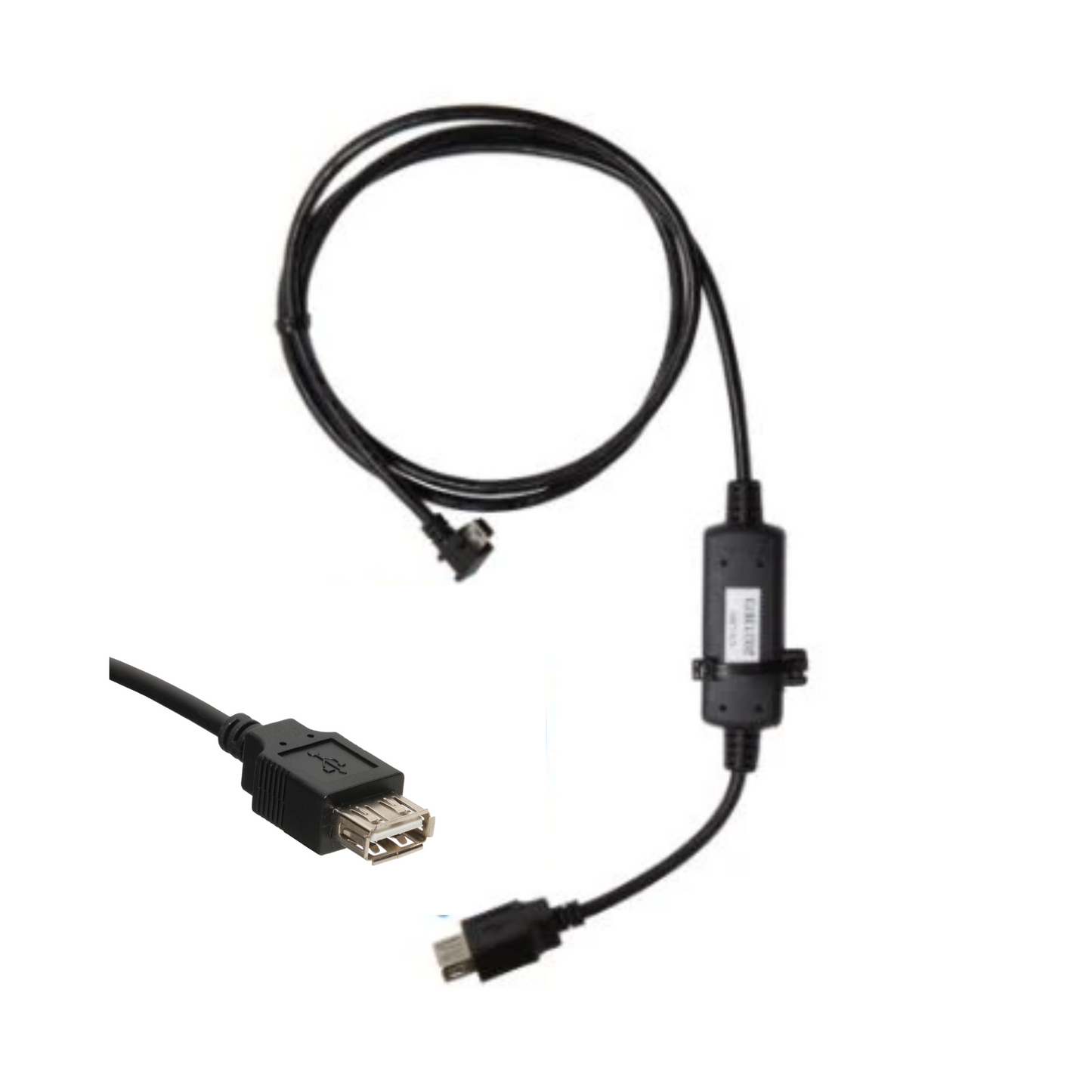

IOX-USB

The IOX-USB by Geotab features an auxiliary USB power adapter designed for charging and powering USB devices. It provides constant power to mobile devices, ensuring uninterrupted usage of battery-intensive applications such as Geotab® Drive while in the vehicle.

Features

• Easy installation for the Geotab GO device
• Charges and provides constant power to USB devices
• Compatible with Geotab’s standard third-party device protocol (my.geotab.com/sdk)

Technical Specifications

• Weight: 64 g
• Size: Overall Length - 1190 mm, Widest Point - 31 mm W × 16 mm H
• Nominal Input Voltage: 12 V / 24 V
• Power Output: 5 V/1.5 A USB Charger
• Interfaces: CAN at 500 kbps (for daisy chaining), USB for data transfer or charging
• Current Draw: 40-100 mA in operating mode, 0.4 mA in sleep mode
• Temperature Rating: −40 ℃ to +85 ℃

Installation

Professional installation recommended. Utilize the supplied USB cable (recommended length of 1 meter) to connect the IOX-USB to the Geotab GO™ device. Refer to https://support.geotab.com/ioxs/doc/iox-usb  for detailed instructions.

Compatibility

Compatible with all GO7® and newer devices and variants.
